Expedition II

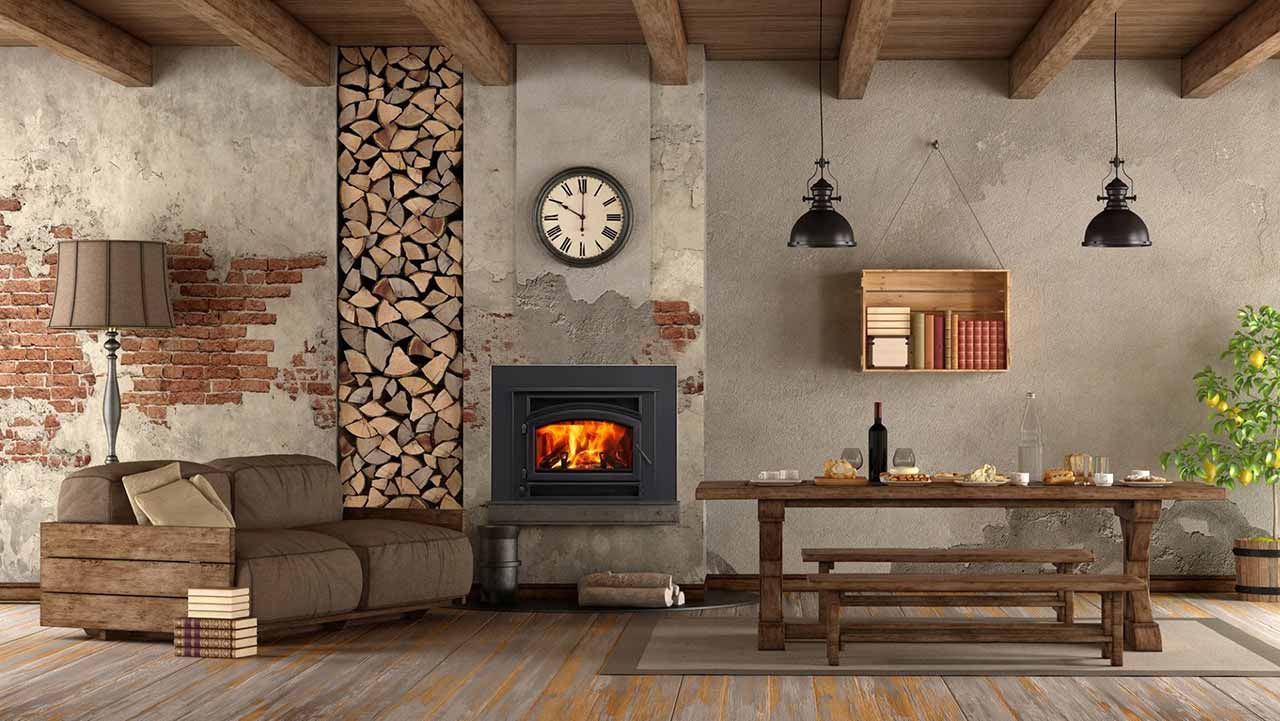

The Quadra-Fire Expedition II is the focal point to any area. A traditional fireplace, sleek in design.
Quadra-Fire’s wood fireplace inserts can be installed into either an existing brickwork chimney, or into a new build using the optional zero clearance box.
Quadra Fires patented technologies gives you ease of operation, higher efficiency and longer burn times, all while using less fuel.
Four-point Burn System (4X)
The patented Four-Point Burn System produces intense rolling flames. Four combustion cycles extend the heat, enhance the fire and increase efficiency for long-lasting, proven performance.
Automatic combustion control (ACC)
Automatic combustion control is an advanced heat management technology. ACC feeds the fire with air when its needed most – for prescient start-ups and consistent, extended burns.
The Quadra-Fire Expedition II is available from distributors in Victoria, Tasmania, New South Wales, South Australia, Queensland and Western Australia.
View All Distributors.
If you are unable to view PDF documents, please download Adobe’s free PDF Reader.
More Info
Expedition II | |
---|---|
Width | 1086mm |
Height | 787mm |
Depth | 475mm |
Weight | 185kg |
Max burn time | Up to 8 Hours |
Heating Capacity | Up to 240msq |
Max log length | 502mm |
Peak BTU/HR Output | 56,000 |
Efficiency | A 61% – P 78% |
Emissions | 1.4 g/hr |
Firebox | 2.4 cu ft |
Variable Speed | 200 cfm |
